스마트 단말기의 급속한 발전으로, 산업 자동화, 및 셀프 서비스 장치, 맞춤형 금속 인클로저의 정밀도와 신뢰성은 최종 제품의 시장 경쟁력을 직접적으로 결정합니다..
ShiJie의 제조 관행을 기반으로, 이 글은 설계 입력부터 최종 제품 납품까지의 8단계 표준화된 제조 프로세스를 체계적으로 분석합니다.. 우리는 핵심 프로세스 제어 지점과 산업 기술 표준에 중점을 둡니다., 엔지니어 및 조달 의사 결정자에게 전문적인 참고 자료 제공.
단계 1: 디자인 검토 & DFM Engineering Optimization
Technical Standards:
GB/T에 따르면 11344-2021 및 ASME Y14.5 표준, 고객 도면의 3차원 검토 수행, 구조적 타당성에 초점, tolerance reasonability, and process adaptability.
Pay particular attention to potential risks such as sharp angles, small bending radii, and weld accessibility.
Quality Control Points:
- The minimum internal radius of bending areas should be ≥ material thickness (R ≥ t) to avoid cracking.
- Tolerances for mounting holes should be controlled within ±0.15mm to ensure precise module assembly.
- Outdoor models must include drainage structures and sealing grooves to enhance IP protection reliability.

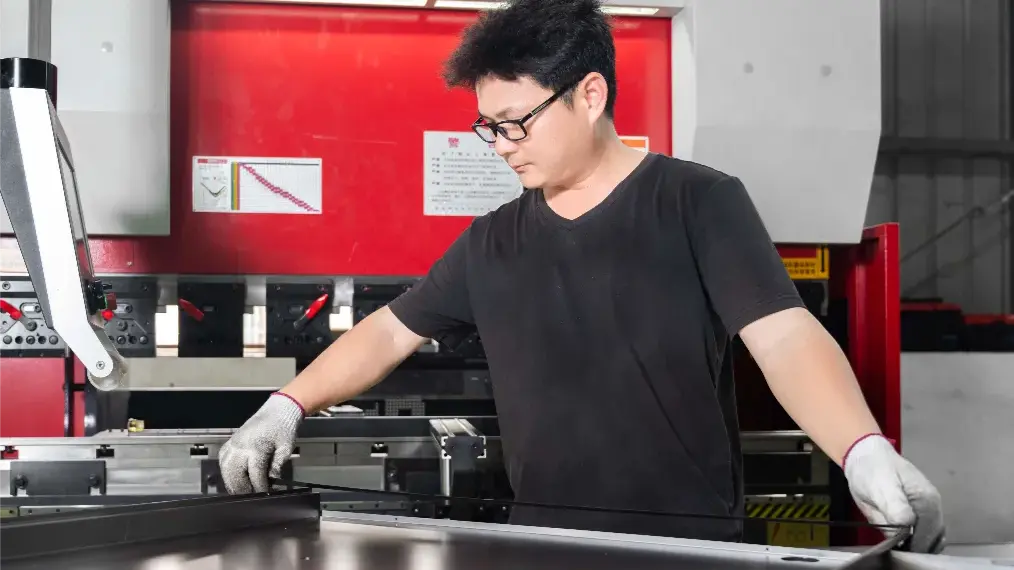

단계 2: Material Selection & Incoming Inspection
Technical Standards:
Strict material certification according to ASTM, JIS, and GB standards: 304/316 스테인레스 스틸 (ASTM A240), 5052/6061 aluminum alloy (ASTM B209), SPCC cold-rolled steel (JIS G3141).
Material Test Reports (MTR) are required for each batch, with spectrometer testing for composition verification.
Quality Control Points:
- Surface quality: No scratches, oxidation spots, or roller marks (refer to ASTM A480).
- Thickness tolerance: Stainless steel ±0.05mm, aluminum ±0.03mm (per GB/T 708).
- For food-grade applications, an EC 1935/2004 compliance declaration and surface roughness testing (Ra ≤ 0.8μm) are required.
단계 3: High-Precision Laser Cutting
Technical Standards:
Use fiber laser cutting systems (power 1.5–6kW) with cutting precision of ±0.05mm, cut edge verticality ≤0.1mm, and heat-affected zone control within 0.15mm. Cutting speed is optimized dynamically based on material: stainless steel 3–5m/min, aluminum alloy 5–8m/min.
Quality Control Points:
- Cutting burr height should not exceed 0.1mm (GB/T 11344).
- Hole diameter should be ≥1.2 times the material thickness to prevent deformation.
- Immediate deburring after cutting to prevent stress concentration during subsequent bending.

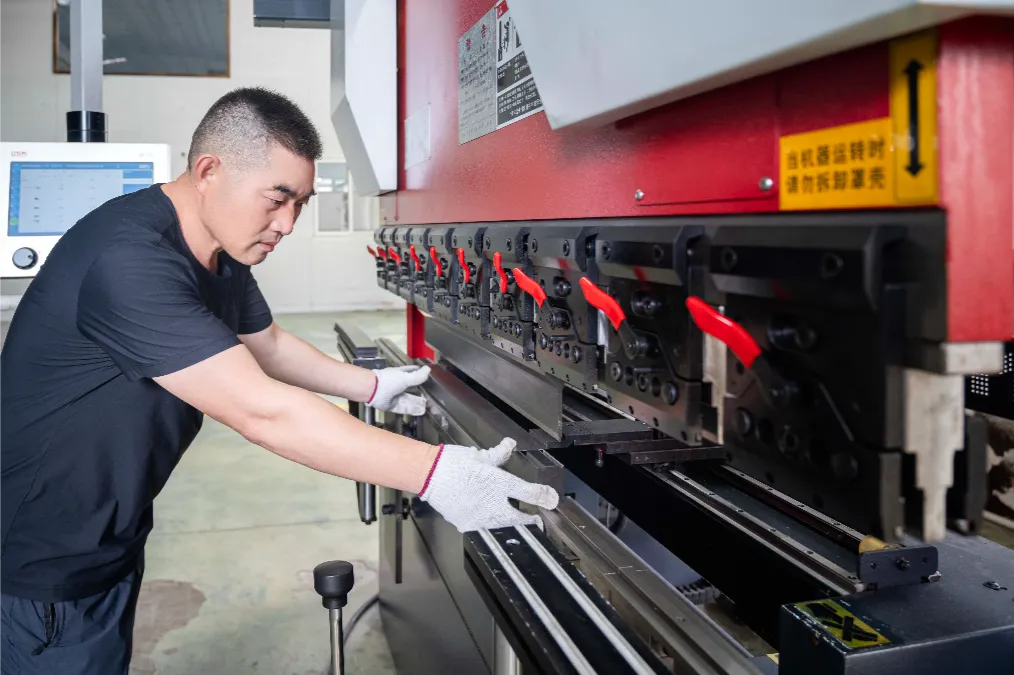

단계 4: CNC Bending & Forming
Technical Standards:
CNC bending machine with specialized dies, angle repeatability of ±0.3°, and compensation for springback using software. Minimum bending radii: stainless steel R ≥ 1.0t, aluminum R ≥ 0.8t.
Quality Control Points:
- Parallelism error between bending line and cutting edge should be ≤0.2mm.
- Cumulative error of multiple bends should be controlled within ±0.5mm.
- After bending, flatness should be checked: ≤0.5mm/m (GB/T 1184).
단계 5: Precision Welding & Structural Reinforcement
Technical Standards:
- 스테인레스 스틸: TIG welding (ISO 4063), argon purity ≥99.99%, weld height 0.5–1.0mm.
- Aluminum alloy: MIG pulse welding, preheating 80–120°C to prevent cracks.
- Welding strength should be ≥80% of base material (AWS D1.1), ~와 함께 100% PT testing (ASTM E165) on critical welds.
Quality Control Points:
- Weld surface should be free from undercuts, porosity, and incomplete fusion (refer to ISO 5817 B level).
- Sealed welds must undergo helium mass spectrometry leak testing (leak rate ≤1×10⁻⁶ Pa·m³/s).
- Passivation treatment (ASTM A967) after welding to restore the corrosion resistance of stainless steel.

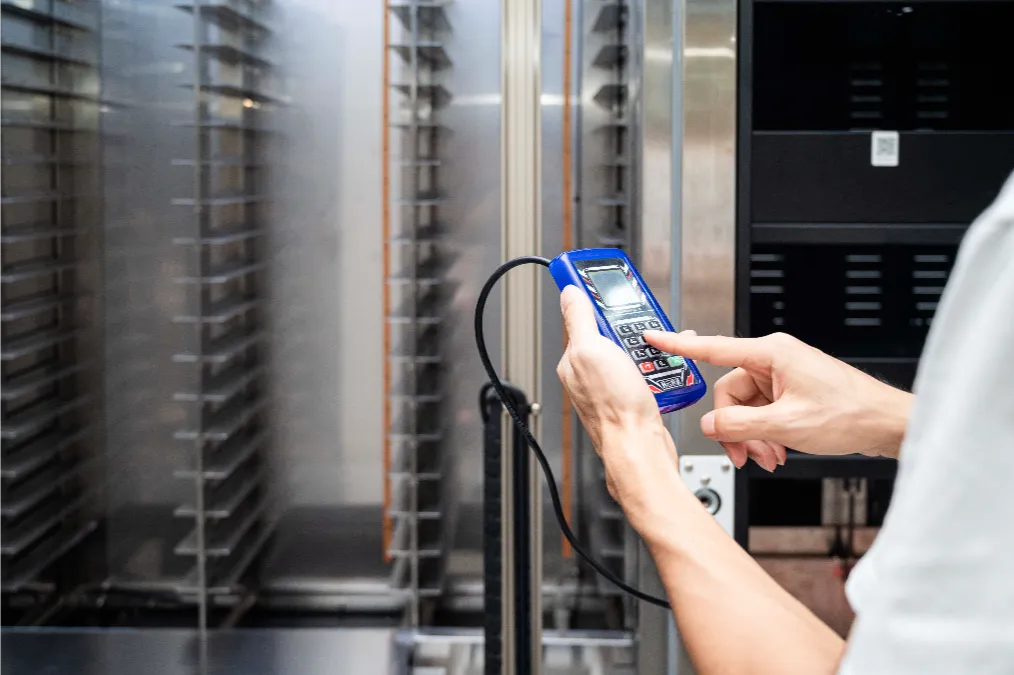

단계 6: Full-Process Non-Destructive Testing
Technical Standards:
Establish a three-level inspection system (IQC/IPQC/OQC):
- 치수: 3D coordinate measurement machine (accuracy ±0.003mm).
- Welds: Penetrant Testing (PT) + Ultrasonic Testing (UT, ASTM E164).
- Surface: Gloss, coating thickness, adhesion (ASTM D3359).
Quality Control Points:
- Critical dimensions must meet a CPK ≥ 1.33, ensuring controlled process capability.
- Testing data must be traceable, generating a digital quality inspection report.
- Non-conforming products are segregated and marked, and 8D root cause analysis is implemented.
단계 7: Specialized Surface Treatment
Technical Standards:
| Process | Coating Thickness | Adhesion Quality | Salt Spray Test | Standard Reference |
| 분말 코팅 | 60–80μm | 0 Grade | ≥500h | ASTM D3359 |
| Fluorocarbon Coating | 30–40μm | 0 Grade | ≥2000h | AAMA 2605 |
| 아노다이징 | 10–25μm | — | ≥1000h | ASTM B117 |
| Zinc-Nickel Plating | 8–15μm | 0 Grade | ≥720h | ASTM B841 |
Quality Control Points:
- Color difference ΔE ≤ 0.8 (CIE Lab * 기준).
- Coating thickness uniformity: range ≤10μm.
- For outdoor applications, prioritize fluorocarbon or anodizing to avoid UV degradation of powder coatings.

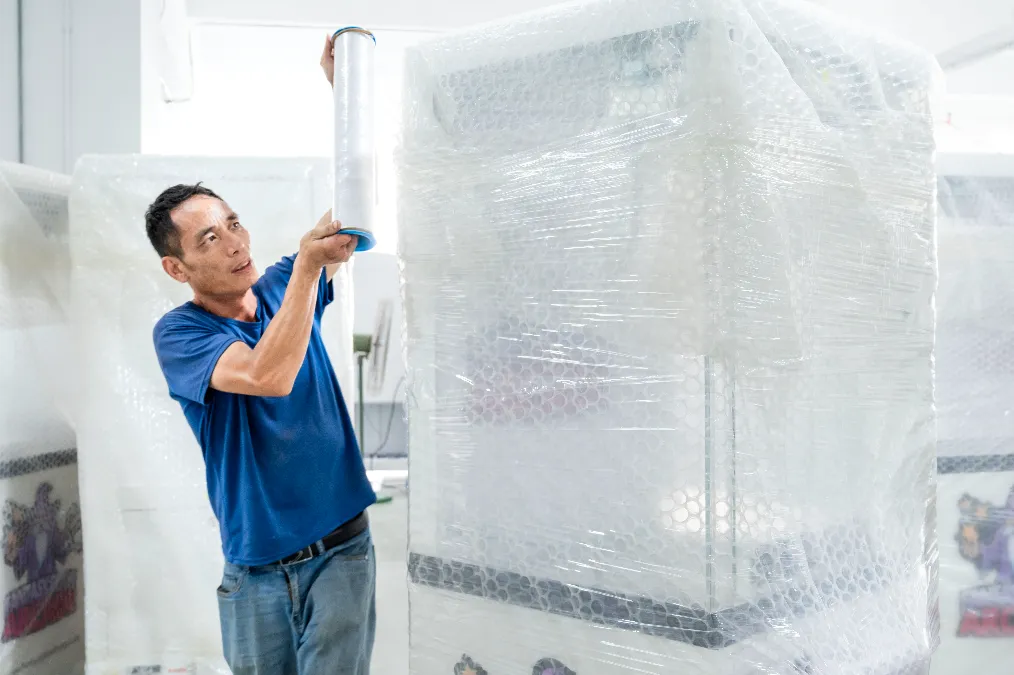

단계 8: Final Inspection, 포장 & 배달
Technical Standards:
Full project final inspection:
- Dimension verification (critical holes ±0.15mm).
- Protection level testing (IP65/IP66 according to IEC 60529).
- Packaging complies with ISTA 3A:2021, including anti-static pearl cotton lining and reinforced wooden boxes.
Quality Control Points:
- Provide material certificates, salt spray reports, dimension reports, and compliance declarations (RoHS/REACH) with shipments.
- Packaging labels include batch numbers, production dates, and protection levels, supporting full traceability.
- Perform 100% visual inspection before shipment to eliminate risk of transportation damage.
Professional Manufacturing, Trusted Delivery
ShiJie has been dedicated to the custom metal enclosure industry, strictly adhering to the ISO 9001 quality management system. We align our processes with IEC, ASTM, GB, and other international and domestic standards throughout the production chain. Our custom enclosure solutions cater to industries like self-service terminals, industrial controls, and medical devices, offering protection levels from IP54 to IP67.
“Rigorous process control and transparent quality traceability are the cornerstones of ShiJie’s trustworthiness with global clients.”— Quality Control Manager
