벽걸이형 전기 인클로저
Compact, space-saving enclosures for control modules, circuit breakers, terminal blocks, and automation components. Available in carbon steel, 아연 도금 강철, 304/316L stainless steel, 및 알루미늄 합금. IP54 to IP66 protection ratings for indoor and outdoor deployment.
Product Introduction
Design purpose, key advantages, and mechanism parameters
| Design Purpose & Key Advantages | |
|---|---|
| Design Purpose | Compact, space-saving enclosures for control modules, circuit breakers, terminal blocks, and automation components. Available in carbon steel, 아연 도금 강철, 304/316L stainless steel, 및 알루미늄 합금. IP54 to IP66 protection ratings for indoor and outdoor deployment. |
| Key Advantage 1 | Space-Saving Design — Wall-mounted enclosures free up floor space while providing ample room for components. Standard depths from 150mm to 400mm accommodate shallow and deep installations alike. Ideal for corridors, utility rooms, production lines, and tight equipment spaces where floor-standing cabinets are impractical. |
| Key Advantage 2 | Sealed Protection — Every enclosure is IP-tested in-house before shipment. Protection ratings are verified, not estimated. |
| Key Advantage 3 | Easy Installation & 유지 — Designed for fast mounting, convenient access, and hassle-free component changes. |
| Key Advantage 4 | Custom Cutouts & 특징 — Every enclosure is built to order. We customize cutouts, mounting holes, and features to your exact specifications. |
| Parameter | Range / Options |
|---|---|
| Standard Sizes | From 200×200×150mm to 1200×800×400mm (H×W×디) |
| IP Protection Rating | IP54 — Indoor industrial (dust-protected, splash water) / IP65 — Outdoor and wash-down (방진, water jets) / IP66 — Heavy rain and coastal (powerful water jets) |
| Door & 입장 | 180° door opening with quick-release hinges for full interior access |
| Cable Entry | 맨 위, 맨 아래, or rear cable entry with waterproof cable glands |
| Internal Separation | Internal separation barriers (Form 1–4 per IEC 61439) |
| 컷아웃 & 특징 | Laser-cut cutouts for breakers, 미터, pushbuttons, and HMI panels; custom ventilation louvers, cooling fans, or heat sinks |
| 표면 처리 | 분체 도장 (any RAL color), brushed/polished finish, 아노다이징 처리 |
| Lock Options | Camlock, padlock hasp, or electronic access |
| Compliance Standards | IEC 61439-1/-3, IEC 60529, ISO 9001, CE, UL, 없다 |
Product Gallery

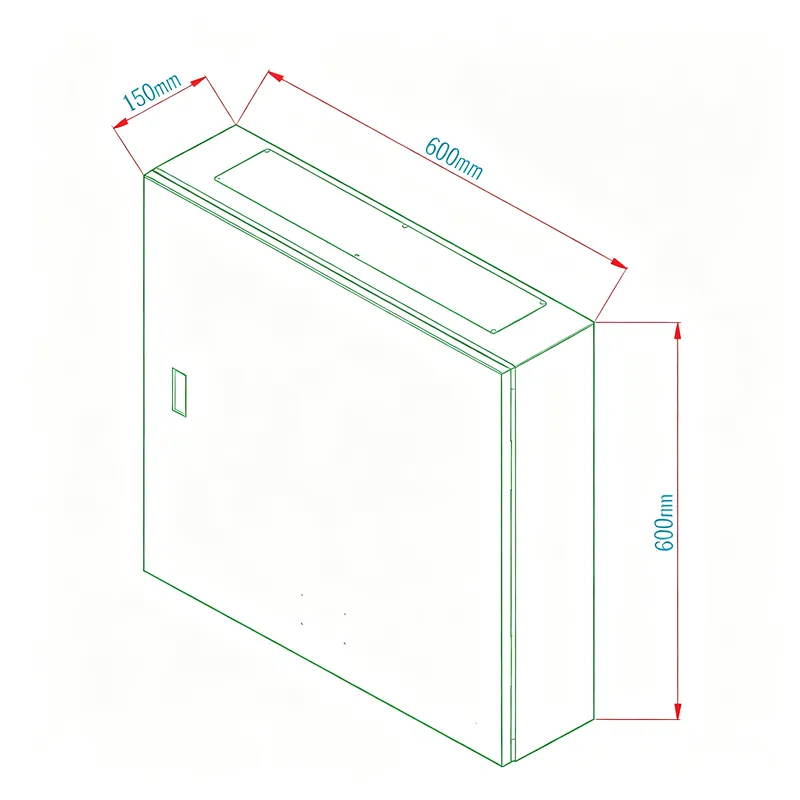

Wall-mounted enclosure series — 600H × 600W × 150디
Closed Door & Lock
Full-circumference door gasket prevents dust, 수분, and condensation.

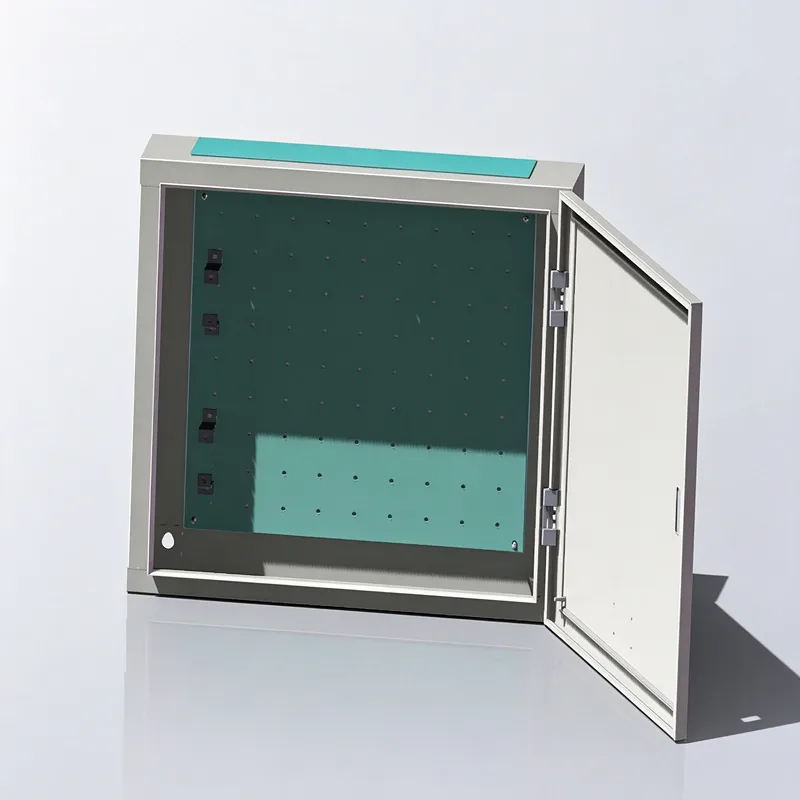

Mounting Plate Access
Removable mounting plate for off-wall wiring and component installation.
DIN Rails & Terminal Blocks
Standardized hole patterns for DIN rails, busbars, and terminal blocks.
Slim-Profile Design
Slim-profile options for shallow wall cavities and panel flush-mounting.
Custom Branding & Markings
Laser-etched or silkscreen logo, labels, and warning markings.
Back Panel & Attachment
Reinforced back panel for secure wall attachment and component mounting.
재료 & Surface Treatment Options
Choose the right material and finish for your environment
| 재료 | 두께 | 최고의 대상 | Key Properties |
|---|---|---|---|
| 탄소강 (SPCC) | 0.8 – 2.0mm | Indoor industrial, cost-sensitive applications | 고강도, economical, requires surface coating for corrosion resistance |
| 아연 도금 강철 (SGCC) | 0.8 – 2.0mm | Indoor and semi-outdoor, general industrial | Zinc coating provides baseline corrosion resistance, good formability, 비용 효율적 |
| 304 / 316L Stainless Steel | 1.0 – 3.0mm | 집 밖의, coastal, 선박, chemical, food processing | Superior corrosion resistance, 10+ year service life in harsh environments, 316L for salt spray |
| 알루미늄 합금 (5052) | 1.0 – 3.0mm | Lightweight applications, heat dissipation, portable enclosures | Natural oxidation resistance, excellent thermal conductivity, lightweight, non-magnetic |
| 표면 처리 | Available Colors | Durability | 최고의 대상 |
|---|---|---|---|
| 분말 코팅 | Any RAL color | Outdoor-grade, UV-resistant, 60+ µm thickness | Carbon steel and galvanized steel; custom branding and color-coding |
| 솔질된 / Polished Finish | Natural metal | Inherent material corrosion resistance | 스테인레스 스틸; premium appearance, easy to clean, 위생 |
| 아노다이징 | Clear or colored | Hard oxide layer, wear and corrosion resistant | 알루미늄 합금; enhanced surface hardness and oxidation resistance |
왜 SHIJIE를 선택해야 할까요?
- ±0.2mm laser cutting for precise cutouts and clean edges
- ±0.5mm bending accuracy for square, consistent enclosures
- Free design drawings within 3 days of requirement confirmation
- IP-tested before shipment — no guesswork on protection ratings
- ISO 9001 품질 관리 시스템
- 15–25 day production lead time with 99.5% on-time delivery
- Export experience to US, EU, 호주, Mexico, 그리고 동남아시아
관련 제품
Explore other electrical enclosure categories
5단계 협력 프로세스
From consultation to delivery — full project lifecycle support
상의 & 설계
Share your requirements, drawings, or samples. Our engineers provide design recommendations and feasibility analysis.
인용
Detailed quotation with material specs, manufacturing process, lead time, and pricing within 24 시간.
원기 & 확인
테스트할 수 있는 기능적 프로토타입이 신속하게 제작됩니다., 검증하다, 양산 전 승인 및 승인.
대규모 생산 & 품질관리
귀하의 주문은 여러 품질 관리 체크포인트를 통해 대규모로 제조됩니다., 자재검사부터 최종조립까지.
완성 & 배달
Final system integration, 엄격한 테스트, 적시에 글로벌 배송을 위한 안전한 포장.
자주 묻는 질문
Answers to common questions about wall-mounted enclosures
예. When manufactured in 304 or 316L stainless steel with IP65 or IP66 protection rating, wall-mounted enclosures perform reliably in outdoor environments. For coastal or high-salt-spray areas, 316L stainless steel with IP66 is recommended. We also offer UV-resistant powder coating and weatherproof sealing gaskets for outdoor deployments.
Wall-mounted enclosures are typically designed for sizes up to 1200mm x 800mm x 400mm (H x W x D). For larger dimensions or heavier internal loads, we recommend transitioning to a floor-standing design. 하지만, we can manufacture wall-mounted enclosures beyond standard sizes with reinforced mounting brackets and structural ribbing — contact us with your specific requirements.
We offer multiple mounting options: standard wall mounting with stainless steel expansion bolts, panel mounting (flush or surface), pole mounting with U-bolts, and rack mounting with slide rails. Mounting brackets and hardware are included. We can also customize mounting plates and back panels for your specific installation scenario.
Standard production lead time is 15–25 days after engineering drawings are confirmed. We provide free design drawings within 3 days of requirement confirmation, and functional prototypes can be produced in 5–7 days for your validation before mass production. Expedited production is available for urgent projects. Lead times may extend for complex configurations involving special surface treatments or non-standard materials.
Our enclosures comply with IEC 61439-1 and IEC 61439-3 for low-voltage switchgear and controlgear assemblies. Ingress protection is tested and rated per IEC 60529, with available ratings from IP54 to IP66. We hold ISO 9001 quality management certification and provide CE, UL, and NEMA compliance documentation for export. Full QC reports and IP test results are provided with every shipment.
We support orders from a single unit for prototyping to large-scale production runs. There is no strict MOQ — per-unit pricing becomes more cost-effective at higher volumes as tooling and setup costs are amortized across the batch. For fully custom designs, the break-even point for competitive pricing typically falls around 50–100 단위. Contact us for tiered quotations at different order volumes.
Powder-coated carbon steel is the most economical option for indoor, 건조한 환경. 아연도금강판 (SGCC) adds baseline corrosion resistance for semi-outdoor use. 304 stainless steel is recommended for humid or wash-down environments, while 316L is essential for coastal, 선박, and chemical applications due to its molybdenum content that resists pitting corrosion from chloride exposure. 알류미늄 (5052) offers excellent strength-to-weight ratio, natural corrosion resistance, and superior thermal conductivity for heat-dissipating applications.
We offer natural convection cooling with IP-rated vented louvers and filter mats (IP54), forced-air cooling with thermostatically controlled fans (intake below, exhaust above), and closed-loop solutions such as enclosure air conditioners for sealed IP66 enclosures with high heat loads. The appropriate solution depends on component heat dissipation (watts), maximum allowable internal temperature, ambient conditions, and required IP rating. Our engineers can perform thermal calculations and recommend the optimal configuration.
