壁取り付け電気エンクロージャ
Compact, space-saving enclosures for control modules, circuit breakers, terminal blocks, and automation components. Available in carbon steel, 亜鉛メッキ鋼, 304/316L stainless steel, およびアルミニウム合金. IP54 to IP66 protection ratings for indoor and outdoor deployment.
Product Introduction
Design purpose, key advantages, and mechanism parameters
| Design Purpose & Key Advantages | |
|---|---|
| Design Purpose | Compact, space-saving enclosures for control modules, circuit breakers, terminal blocks, and automation components. Available in carbon steel, 亜鉛メッキ鋼, 304/316L stainless steel, およびアルミニウム合金. IP54 to IP66 protection ratings for indoor and outdoor deployment. |
| Key Advantage 1 | Space-Saving Design — Wall-mounted enclosures free up floor space while providing ample room for components. Standard depths from 150mm to 400mm accommodate shallow and deep installations alike. Ideal for corridors, utility rooms, production lines, and tight equipment spaces where floor-standing cabinets are impractical. |
| Key Advantage 2 | Sealed Protection — Every enclosure is IP-tested in-house before shipment. Protection ratings are verified, not estimated. |
| Key Advantage 3 | Easy Installation & Maintenance — Designed for fast mounting, convenient access, and hassle-free component changes. |
| Key Advantage 4 | Custom Cutouts & 特徴 — Every enclosure is built to order. We customize cutouts, mounting holes, and features to your exact specifications. |
| Parameter | Range / Options |
|---|---|
| Standard Sizes | From 200×200×150mm to 1200×800×400mm (H×W×D) |
| IP Protection Rating | IP54 — Indoor industrial (dust-protected, splash water) / IP65 — Outdoor and wash-down (防塵, water jets) / IP66 — Heavy rain and coastal (powerful water jets) |
| Door & アクセス | 180° door opening with quick-release hinges for full interior access |
| Cable Entry | トップ, bottom, or rear cable entry with waterproof cable glands |
| Internal Separation | Internal separation barriers (Form 1–4 per IEC 61439) |
| カットアウト & 特徴 | Laser-cut cutouts for breakers, メートル, pushbuttons, and HMI panels; custom ventilation louvers, cooling fans, or heat sinks |
| 表面処理 | 粉体塗装 (any RAL color), brushed/polished finish, 陽極酸化処理 |
| Lock Options | Camlock, padlock hasp, or electronic access |
| Compliance Standards | IEC 61439-1/-3, IEC 60529, ISO 9001, CE, UL, ありません |
Product Gallery

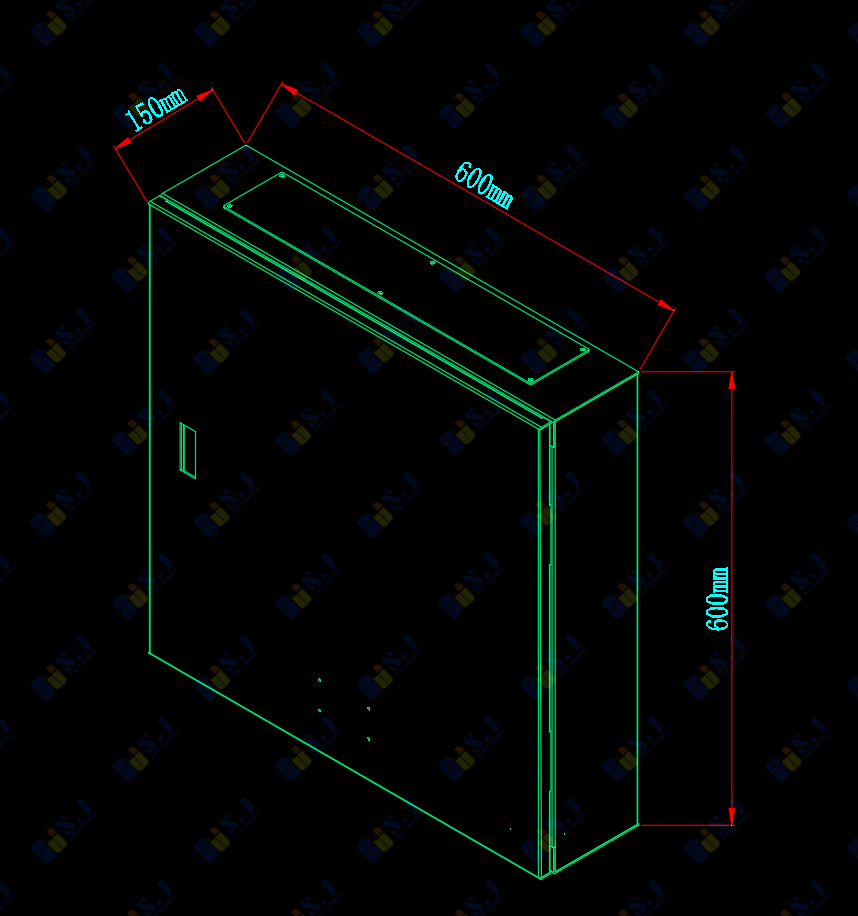

Wall-mounted enclosure series — 600H × 600W × 150D

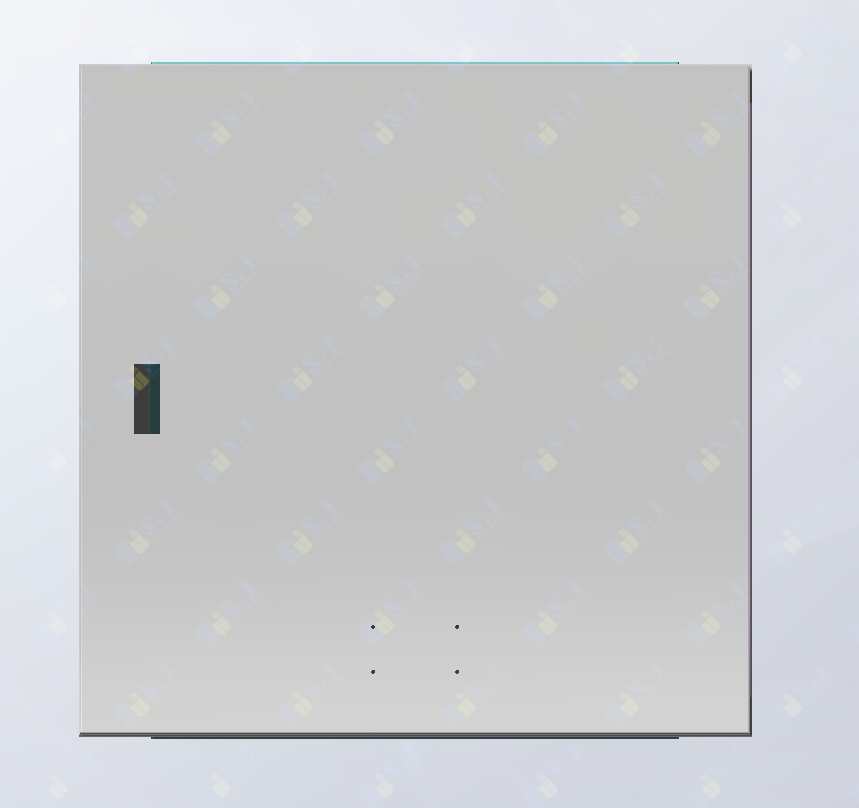

Closed Door & Lock
Full-circumference door gasket prevents dust, moisture, and condensation.

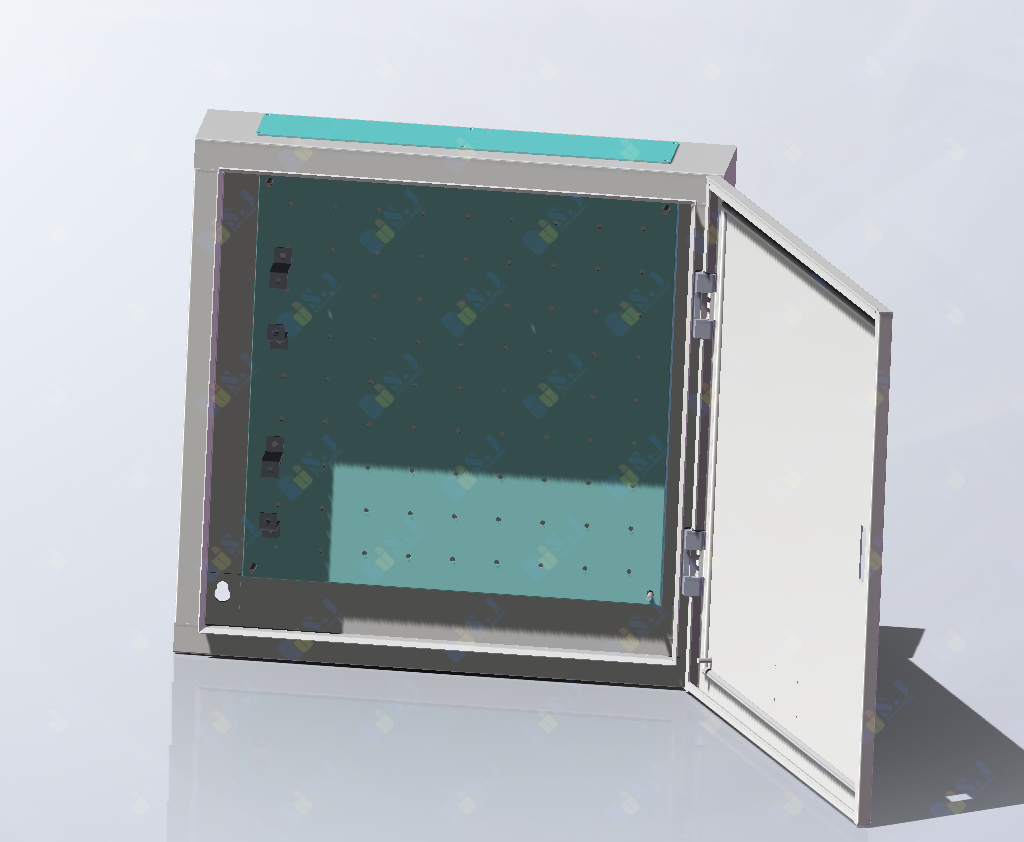

Mounting Plate Access
Removable mounting plate for off-wall wiring and component installation.
DIN Rails & Terminal Blocks
Standardized hole patterns for DIN rails, busbars, and terminal blocks.

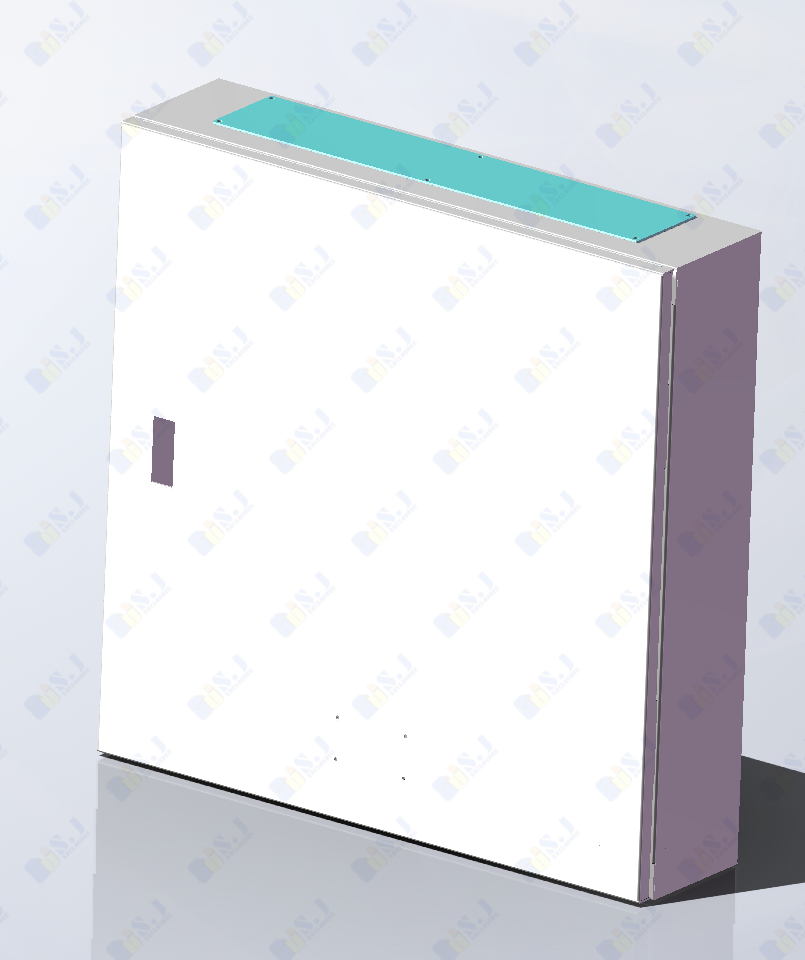

Slim-Profile Design
Slim-profile options for shallow wall cavities and panel flush-mounting.
Custom Branding & Markings
Laser-etched or silkscreen logo, labels, and warning markings.

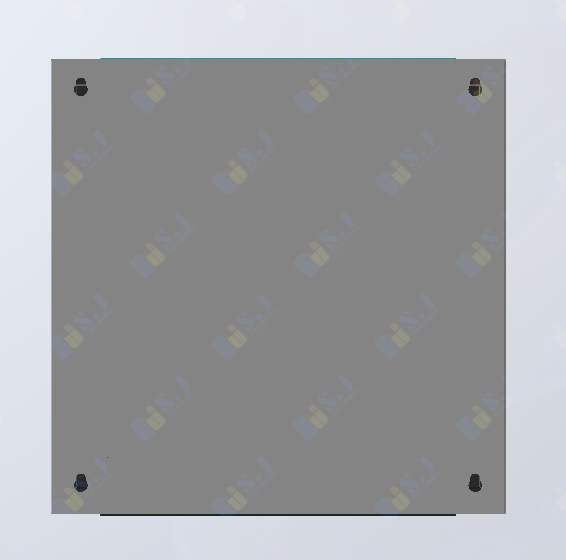

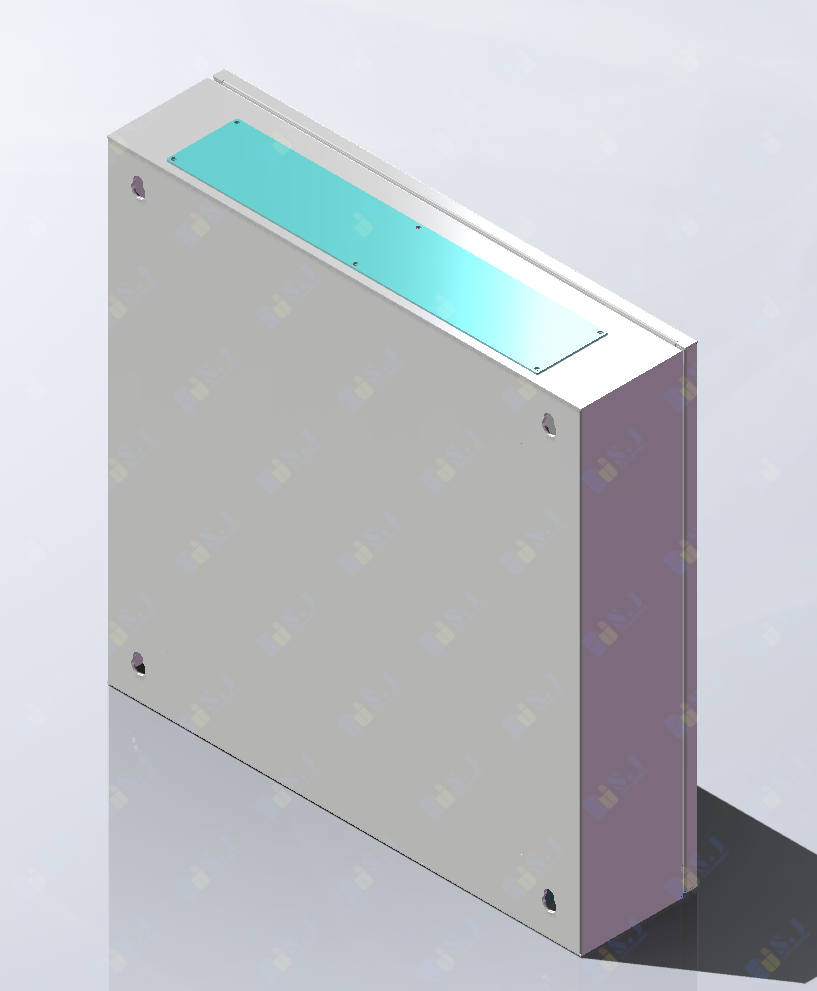

Back Panel & Attachment
Reinforced back panel for secure wall attachment and component mounting.
材料 & Surface Treatment Options
Choose the right material and finish for your environment
| 材料 | 厚さ | Best For | Key Properties |
|---|---|---|---|
| 炭素鋼 (SPCC) | 0.8 – 2.0mm | Indoor industrial, cost-sensitive applications | 高強度, economical, requires surface coating for corrosion resistance |
| 亜鉛メッキ鋼 (SGCC) | 0.8 – 2.0mm | Indoor and semi-outdoor, general industrial | Zinc coating provides baseline corrosion resistance, good formability, cost-effective |
| 304 / 316L Stainless Steel | 1.0 – 3.0mm | アウトドア, coastal, 海洋, chemical, food processing | Superior corrosion resistance, 10+ year service life in harsh environments, 316L for salt spray |
| アルミニウム合金 (5052) | 1.0 – 3.0mm | Lightweight applications, heat dissipation, portable enclosures | Natural oxidation resistance, excellent thermal conductivity, lightweight, non-magnetic |
| 表面処理 | Available Colors | Durability | Best For |
|---|---|---|---|
| 粉体塗装 | Any RAL color | Outdoor-grade, UV-resistant, 60+ µm thickness | Carbon steel and galvanized steel; custom branding and color-coding |
| つや消し / Polished Finish | Natural metal | Inherent material corrosion resistance | ステンレス鋼; premium appearance, easy to clean, 衛生的な |
| 陽極酸化処理 | Clear or colored | Hard oxide layer, wear and corrosion resistant | アルミニウム合金; enhanced surface hardness and oxidation resistance |
SHIJIEを選ぶ理由
- ±0.2mm laser cutting for precise cutouts and clean edges
- ±0.5mm bending accuracy for square, consistent enclosures
- Free design drawings within 3 days of requirement confirmation
- IP-tested before shipment — no guesswork on protection ratings
- ISO 9001 品質管理システム
- 15–25 day production lead time with 99.5% on-time delivery
- Export experience to US, EU, オーストラリア, Mexico, そして東南アジア
関連製品
Explore other electrical enclosure categories
5 段階の協力プロセス
From consultation to delivery — full project lifecycle support
相談 & デザイン
Share your requirements, drawings, or samples. Our engineers provide design recommendations and feasibility analysis.
引用
Detailed quotation with material specs, manufacturing process, lead time, and pricing within 24 時間.
プロトタイプ & 検証
機能的なプロトタイプが迅速に作成され、テストできるようになります。, 検証する, 量産前に承認.
スケール生産 & 品質管理
ご注文は複数の品質管理チェックポイントを使用して大規模に製造されます, 材料検査から最終組立まで.
統合 & 配達
Final system integration, 厳格なテスト, タイムリーな世界配送のための安全な梱包.
よくある質問
Answers to common questions about wall-mounted enclosures
はい. When manufactured in 304 or 316L stainless steel with IP65 or IP66 protection rating, wall-mounted enclosures perform reliably in outdoor environments. For coastal or high-salt-spray areas, 316L stainless steel with IP66 is recommended. We also offer UV-resistant powder coating and weatherproof sealing gaskets for outdoor deployments.
Wall-mounted enclosures are typically designed for sizes up to 1200mm x 800mm x 400mm (H x W x D). For larger dimensions or heavier internal loads, we recommend transitioning to a floor-standing design. しかし, we can manufacture wall-mounted enclosures beyond standard sizes with reinforced mounting brackets and structural ribbing — contact us with your specific requirements.
We offer multiple mounting options: standard wall mounting with stainless steel expansion bolts, panel mounting (flush or surface), pole mounting with U-bolts, and rack mounting with slide rails. Mounting brackets and hardware are included. We can also customize mounting plates and back panels for your specific installation scenario.
Standard production lead time is 15–25 days after engineering drawings are confirmed. We provide free design drawings within 3 days of requirement confirmation, and functional prototypes can be produced in 5–7 days for your validation before mass production. Expedited production is available for urgent projects. Lead times may extend for complex configurations involving special surface treatments or non-standard materials.
Our enclosures comply with IEC 61439-1 and IEC 61439-3 for low-voltage switchgear and controlgear assemblies. Ingress protection is tested and rated per IEC 60529, with available ratings from IP54 to IP66. We hold ISO 9001 quality management certification and provide CE, UL, and NEMA compliance documentation for export. Full QC reports and IP test results are provided with every shipment.
We support orders from a single unit for prototyping to large-scale production runs. There is no strict MOQ — per-unit pricing becomes more cost-effective at higher volumes as tooling and setup costs are amortized across the batch. For fully custom designs, the break-even point for competitive pricing typically falls around 50–100 単位. Contact us for tiered quotations at different order volumes.
Powder-coated carbon steel is the most economical option for indoor, 乾燥した環境. 亜鉛メッキ鋼 (SGCC) adds baseline corrosion resistance for semi-outdoor use. 304 stainless steel is recommended for humid or wash-down environments, while 316L is essential for coastal, 海洋, and chemical applications due to its molybdenum content that resists pitting corrosion from chloride exposure. アルミニウム (5052) offers excellent strength-to-weight ratio, natural corrosion resistance, and superior thermal conductivity for heat-dissipating applications.
We offer natural convection cooling with IP-rated vented louvers and filter mats (IP54), forced-air cooling with thermostatically controlled fans (intake below, exhaust above), and closed-loop solutions such as enclosure air conditioners for sealed IP66 enclosures with high heat loads. The appropriate solution depends on component heat dissipation (watts), maximum allowable internal temperature, ambient conditions, and required IP rating. Our engineers can perform thermal calculations and recommend the optimal configuration.
