Low Voltage Withdrawable Switchgear Cabinets
Drawer-type modular switchgear enclosures designed for low-voltage power distribution and motor control applications. Each withdrawable unit can be safely removed and inserted without de-energizing the main busbar — allowing maintenance and reconfiguration without system-wide shutdown.
Product Introduction
Design purpose, key advantages, and mechanism parameters
| Design Purpose & Key Advantages | |
|---|---|
| Design Purpose | Drawer-type modular switchgear enclosures designed for low-voltage power distribution and motor control applications. Each withdrawable unit can be safely removed and inserted without de-energizing the main busbar — allowing maintenance and reconfiguration without system-wide shutdown. |
| Key Advantage 1 | Safe Maintenance — Withdraw units for inspection or replacement without power interruption to the main busbar. |
| Key Advantage 2 | Modular Flexibility — Add, remove, or reposition drawer modules as load requirements change over time. |
| Key Advantage 3 | Reduced Downtime — Hot-swap capability keeps critical systems running during maintenance operations. |
| Key Advantage 4 | Standardized Positions — Each drawer has defined positions: connected, test, and isolated for operational safety. |
| Parameter | Range / Options |
|---|---|
| Dimensions | Custom (Common: 800W × 1000D × 2200H) |
| Rated Voltage | 380V / 400V / 415V / 690V AC |
| Rated Current (Main Busbar) | Up to 6300A |
| Rated Current (Drawer) | Up to 630A per module |
| Short-Circuit Withstand | Up to 80kA (1s) |
| IP Rating (Enclosure) | IP30 – IP54 (Indoor Installation) |
| Degree of Protection (Drawers) | IP2X (Internal) |
| Internal Separation | Form 3b or Form 4 per IEC 61439 (configurable) |
| Standards | IEC 61439-1/-2, GB 7251 |
Product Gallery
MNS withdrawable switchgear series — 800W × 1000D × 2200H

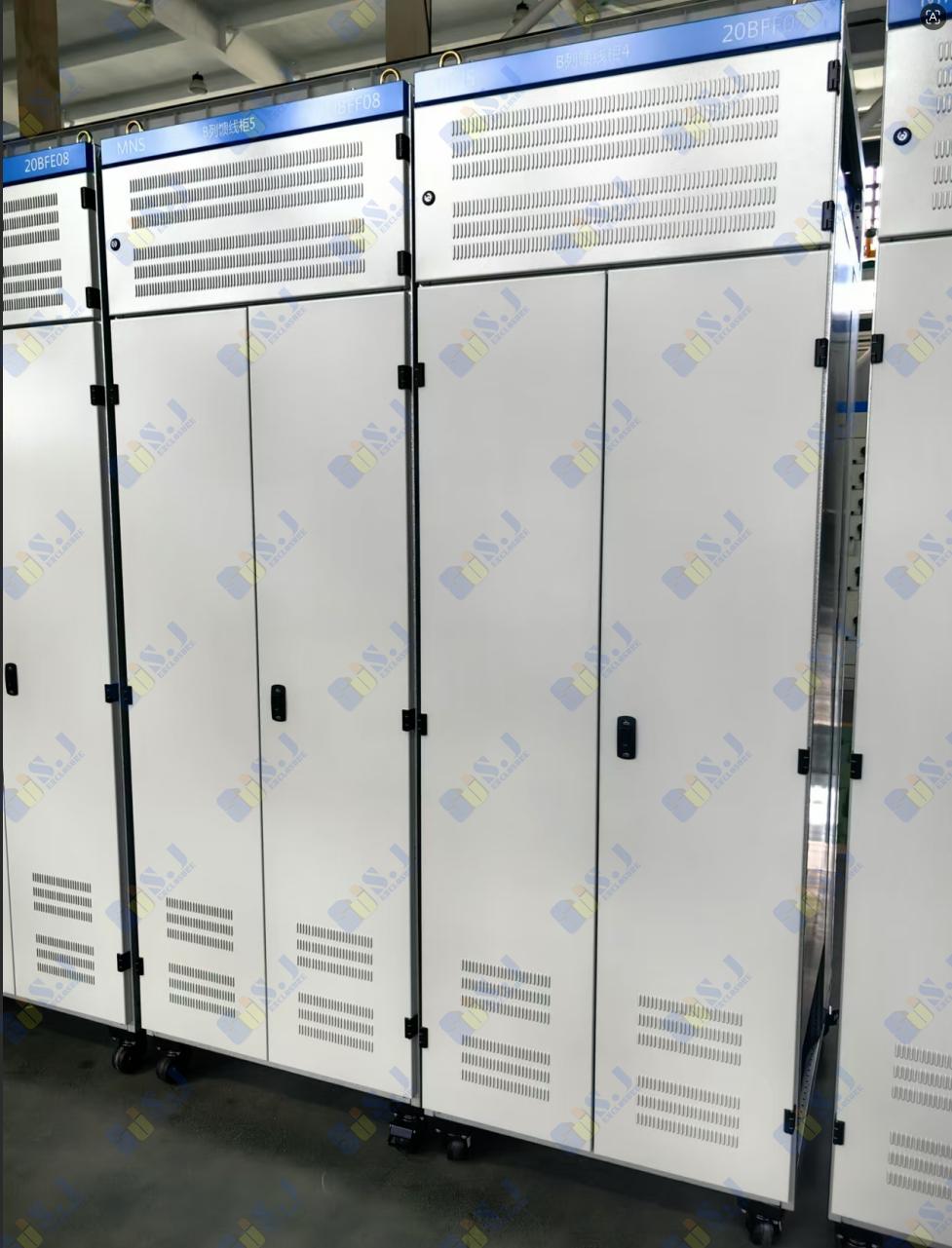

Main Breaker Compartment
High-capacity main busbar system rated up to 6300A.

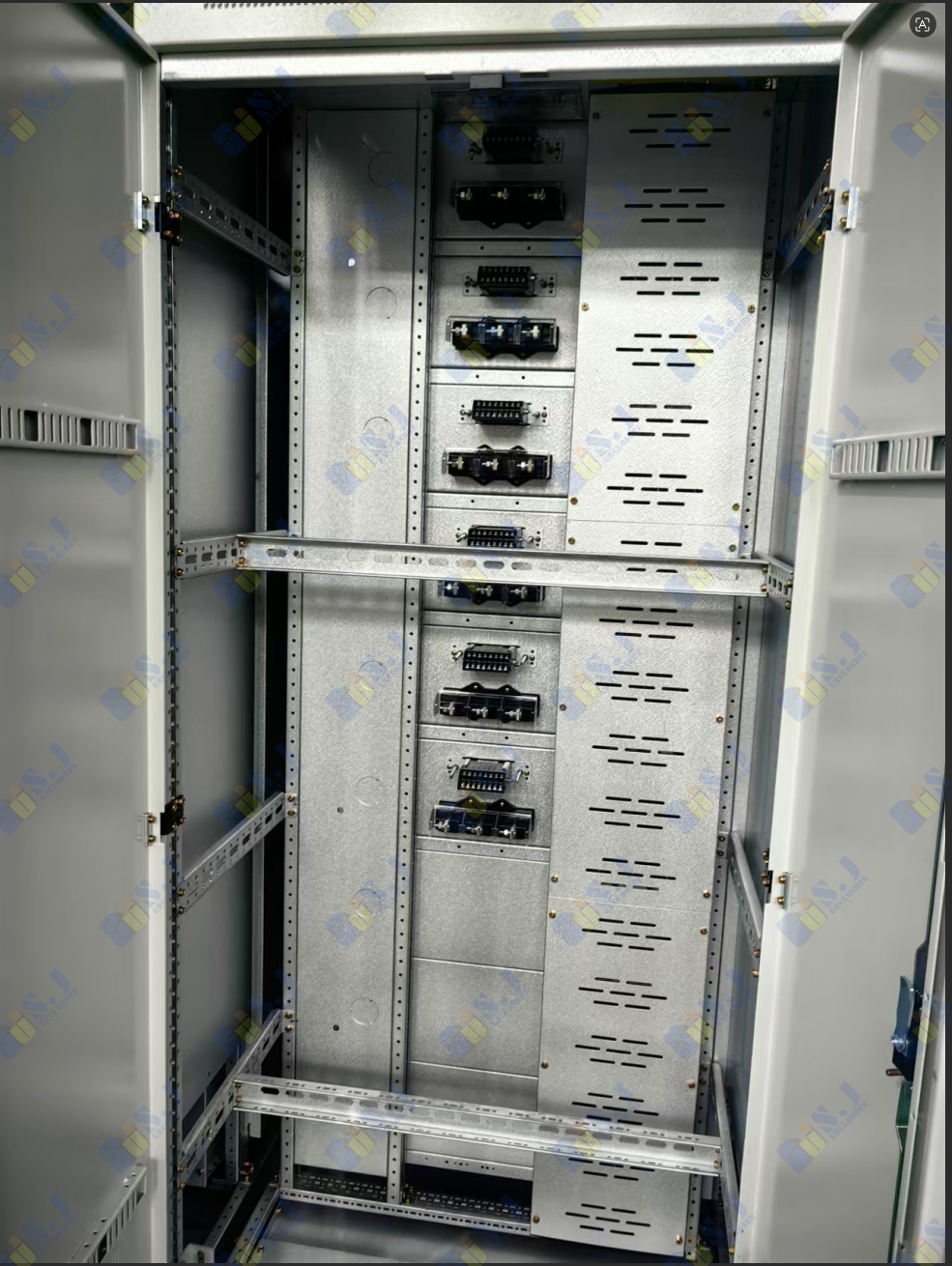

Withdrawable Module
Standardized drawer units with mechanical interlocking for safe operation.

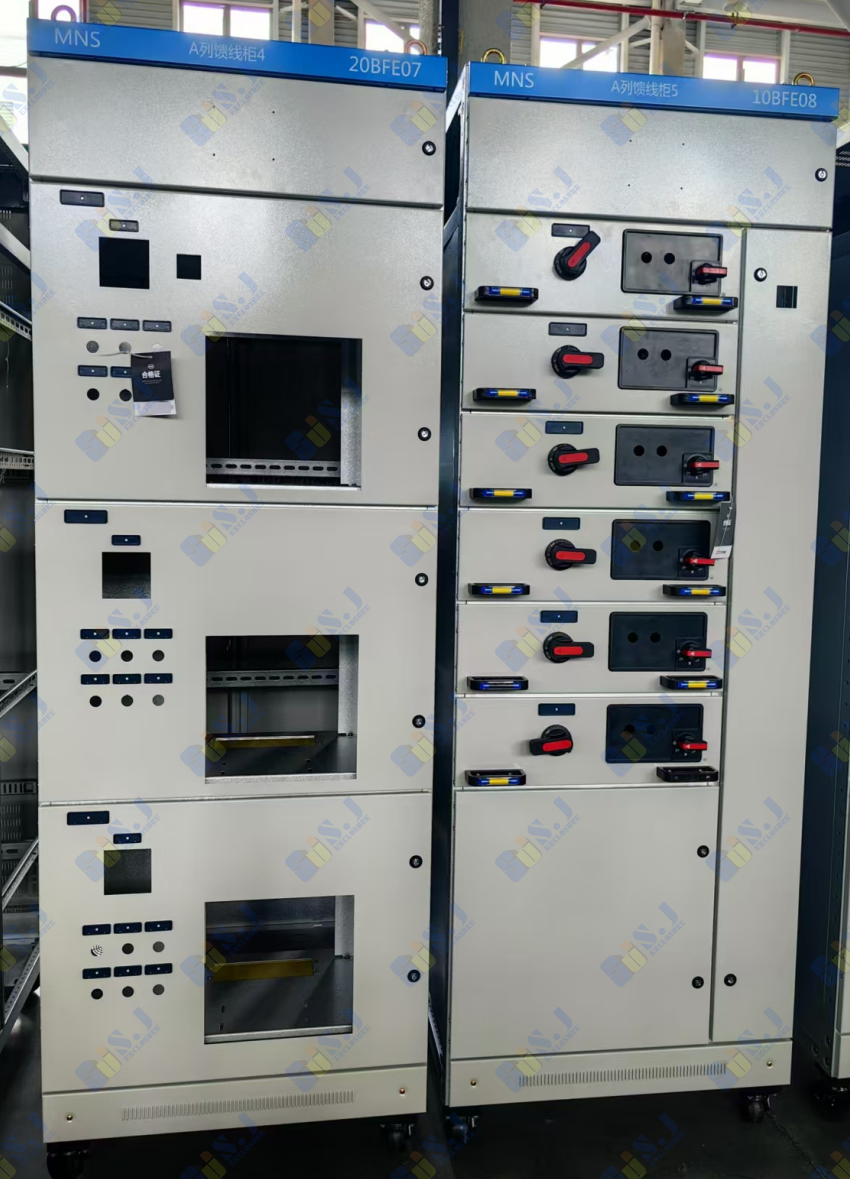

Busbar & Cable Chamber
Separate busbar chamber and cable chamber for safety and accessibility.

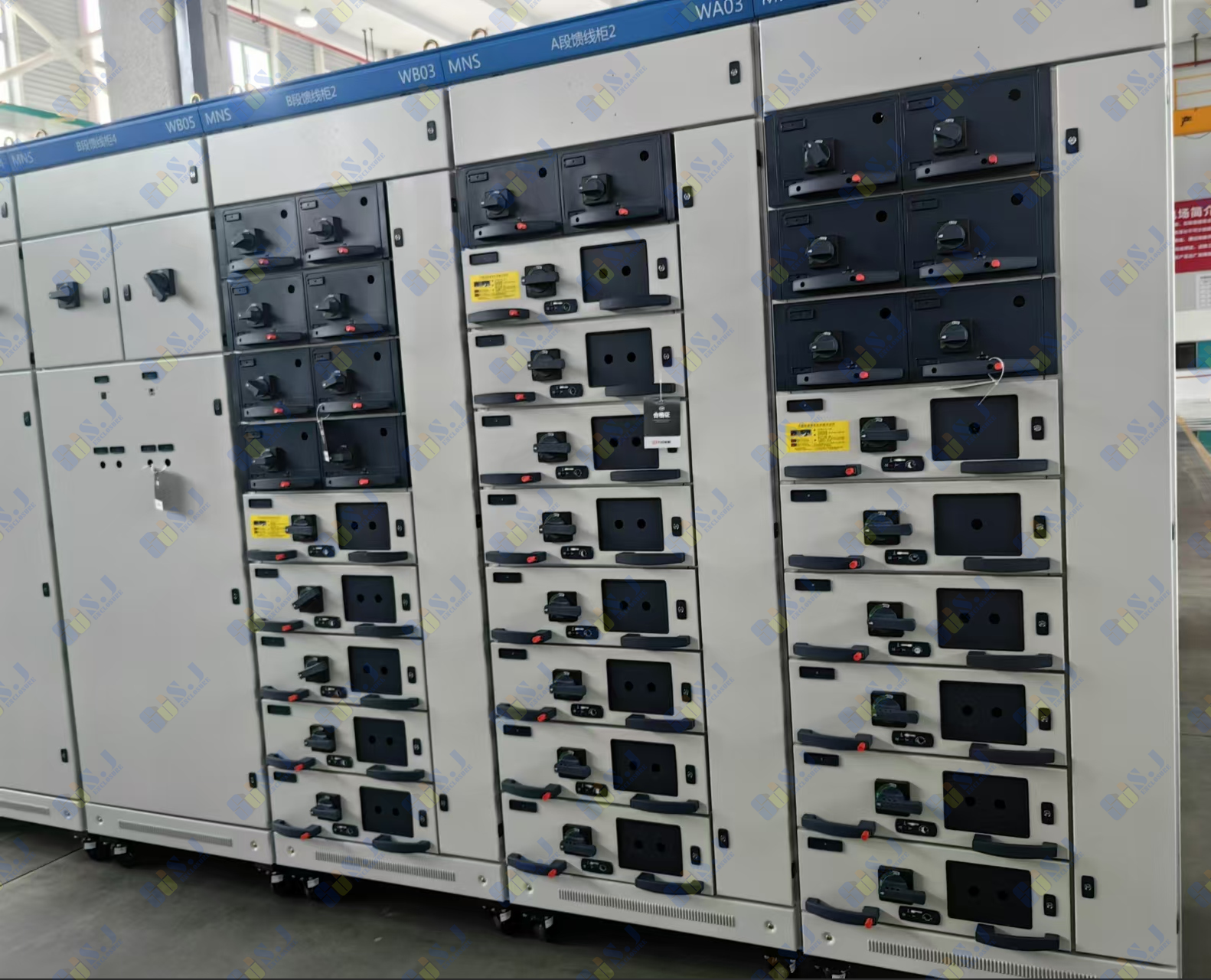

Compartmentalized Design
Internal separation per IEC 61439 Form 3b or Form 4.

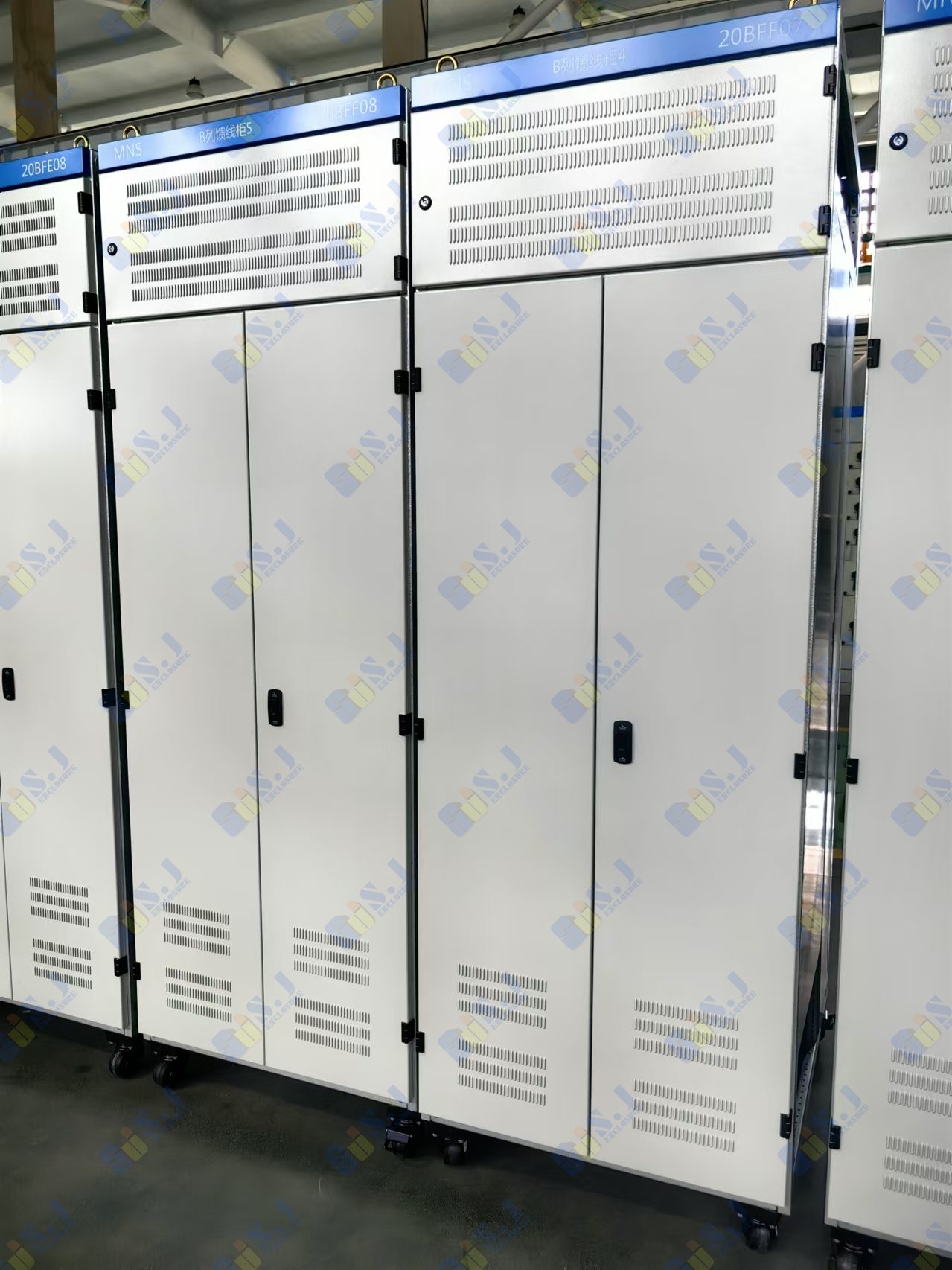

Position Indicator
Connected → Test → Disconnected positions for operational safety.

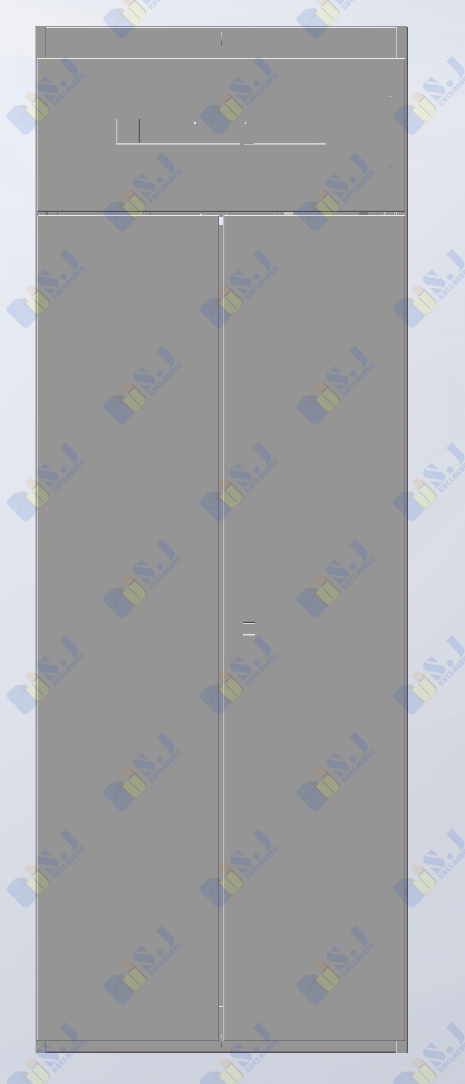

Cable Management
Dedicated top and bottom cable entry zones with generous routing space.
Customization Capabilities
Send us your specifications for a tailored design
| Category | Options |
|---|---|
| Drawer Configurations | Custom breaker type, starter type, metering per drawer module |
| Instrumentation | Ammeter, voltmeter, energy meter, power factor meter |
| Control Circuits | PLC interface, communication modules, remote monitoring |
| Arc-Flash Safety | Arc-flash containment design per IEC 61439 standards |
| Climate Control | Internal fans, heaters, or air conditioning systems |
| Color & Labeling | Custom colors and labeling per client standards |
| Full Assembly | Breaker installation and wiring included (optional) |
Why Choose SHIJIE
- ±0.2mm laser cutting for precise cutouts and clean edges
- ±0.5mm bending accuracy for square, consistent enclosures
- Free design drawings within 3 days of requirement confirmation
- IP-tested before shipment — no guesswork on protection ratings
- ISO 9001 quality management system
- 15–25 day production lead time with 99.5% on-time delivery
- Export experience to US, EU, Australia, Mexico, and Southeast Asia
Related Products
Explore other electrical enclosure categories
Our 5-Step Cooperation Process
From consultation to delivery — full project lifecycle support
Consultation & Design
Share your requirements, drawings, or samples. Our engineers provide design recommendations and feasibility analysis.
Quotation
Detailed quotation with material specs, manufacturing process, lead time, and pricing within 24 hours.
Prototype & Validation
A functional prototype is rapidly produced for you to test, validate, and approve before mass production.
Scaled Production & QC
Your order is manufactured at scale with multiple quality control checkpoints, from material inspection to final assembly.
Integration & Delivery
Final system integration, rigorous testing, and secure packaging for timely global delivery.
Frequently Asked Questions
Answers to common questions about MNS switchgear
Fixed-type switchgear has breakers and components permanently bolted into the enclosure — maintenance requires powering down the entire panel. Withdrawable (draw-out) switchgear houses each breaker in a movable drawer module that can be withdrawn while the main busbar remains energized, allowing safe maintenance without system-wide shutdown. This significantly reduces downtime and improves operational flexibility.
Yes. Our cabinets are designed to be dimensionally and functionally compatible with MNS-type architectures, making them suitable for expansion projects, spare cabinet additions, or full system replacements. We can match existing busbar heights, drawer interface dimensions, and panel alignment specifications.
Yes. We can deliver bare enclosures (fabricated and painted, ready for your internal assembly) or fully assembled systems with breakers, busbars, wiring, and testing. Specify your preference in the quotation request, and we will provide a detailed proposal covering component sourcing, assembly timeline, and testing documentation.
Enclosures are manufactured to IEC 61439-1/-2 requirements. We provide type-test documentation, material certificates, and dimensional reports. For full type-tested assembly certification, please discuss your specific requirements with our engineering team, as this involves additional testing and compliance procedures.
Standard production lead time is 15–25 days for bare enclosures. Fully assembled systems with breakers may require additional time depending on component availability. We provide a confirmed timeline with your quotation and offer expedited production for urgent projects.
