Low Voltage Withdrawable Switchgear Cabinets

Drawer-type modular switchgear enclosures designed for low-voltage power distribution and motor control applications. Each withdrawable unit can be safely removed and inserted without de-energizing the entire system.

Sizes 800W × 1000D × 2200H (Custom)

IP Rating IP30 – IP54

Rated Current Up to 6300A

Vorlaufzeit 15-25 Tage

Request Custom Quote View Product Details

Product Introduction

Design Purpose, Key Advantages, and Mechanism Parameters

Design Purpose

Safe Maintenance

Withdraw units for inspection or replacement without power interruption to the main busbar.

Modular Flexibility

Add, remove, or reposition drawer modules as load requirements change over time.

Reduced Downtime

Hot-swap capability keeps critical systems running during maintenance operations.

Standardized Positions

Each drawer has defined positions: connected, test, and isolated for operational safety.

Mechanism Parameters

Technical specifications for low-voltage withdrawable switchgear

Dimensions & Electrical Modules & Capacity Protection & Safety Standards & MOQ

Abmessungen

800W × 1000D × 2200H mm

Custom widths and depths available for specific sites

Rated Voltage

Up to 690V AC

Compatible with 380V / 400V / 415V systems

Busbar Current

Up to 6300A

High-conductivity copper busbar system

Drawer Module Capacity

Standardized withdrawable units rated up to 630A per module. Supports multiple drawer sizes (8E/4, 8E/2, 8E, 16E, 24E) for flexible motor control and feeder configurations.

Short-Circuit Rating

Rated short-time withstand current (Icw) up to 80kA (1S). Designed for high-fault current industrial environments.

Enclosure IP Rating

IP30 – IP54

Indoor industrial protection levels

Internal Separation

Form 3b / Form 4

Full compartmentalization per IEC 61439 Standards

Operational Security

Three-position mechanical interlocking (Connected, Test, Disconnected). Drawers cannot be withdrawn while the breaker is closed.

Compliance Standards

IEC 61439-1/-2, GB 7251

Full technical documentation and test reports available

Ordering Logistics

Mindestbestellmenge: 1 Unit | 15-25 Tage

Direct factory pricing with global shipping support

Product Gallery

MNS Withdrawable Switchgear Series — 800W × 1000D × 2200H

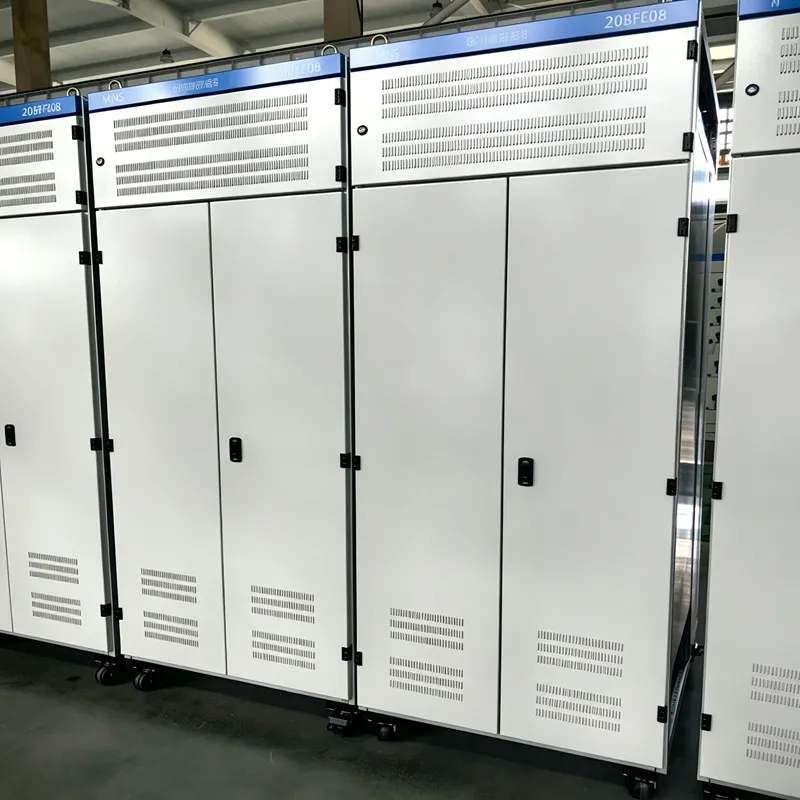

Front View Main Breaker Compartment

Main Breaker Compartment

High-capacity main busbar system rated up to 6300A.

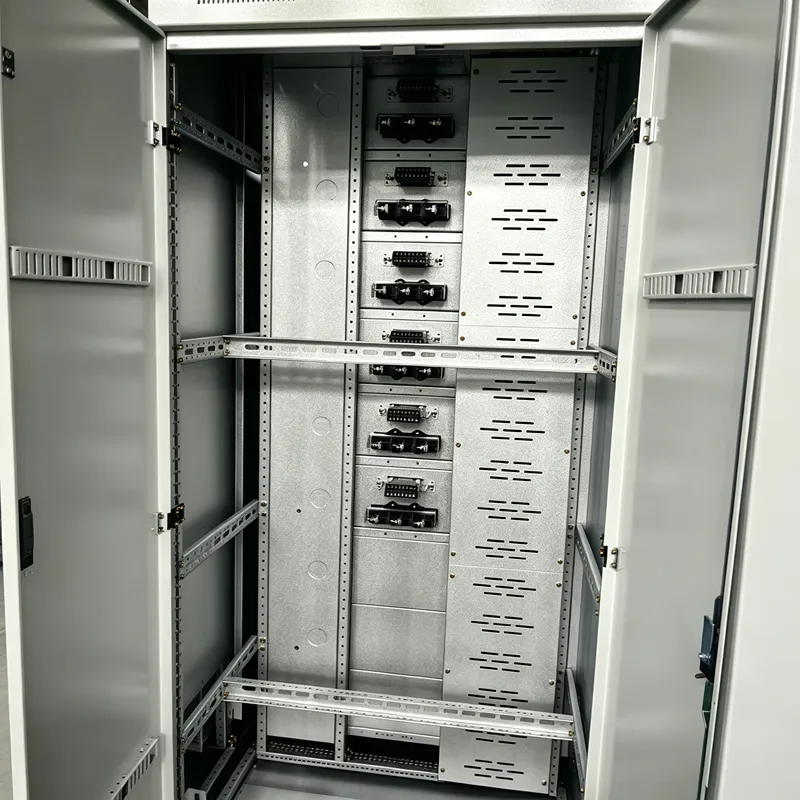

Drawer Open Withdrawable Module

Withdrawable Module

Standardized drawer units with mechanical interlocking for safe operation.

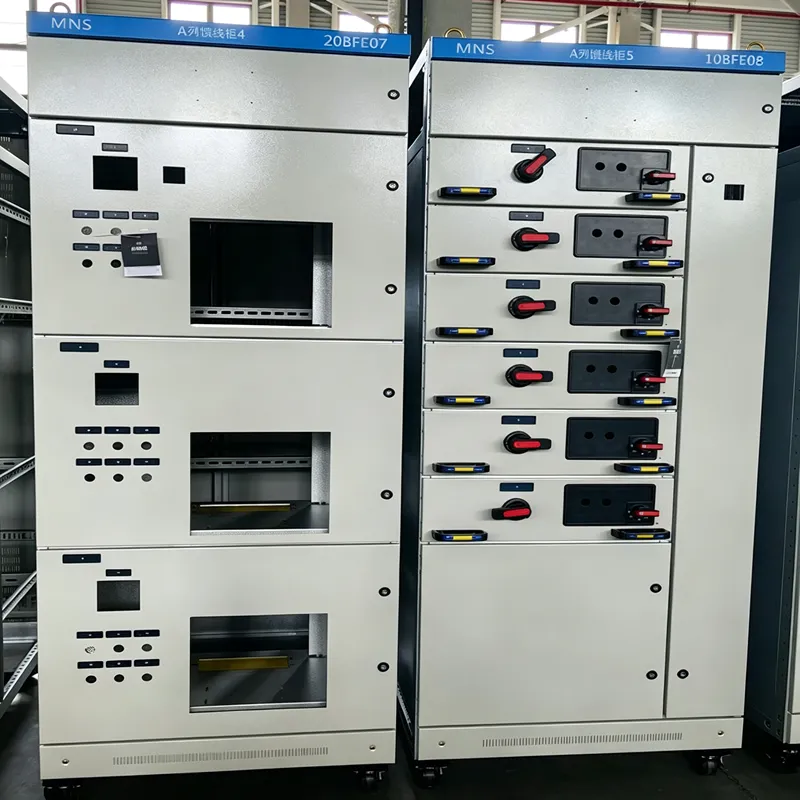

Interior Structure Busbar & Cable Chamber

Busbar & Cable Chamber

Separate busbar chamber and cable chamber for safety and accessibility.

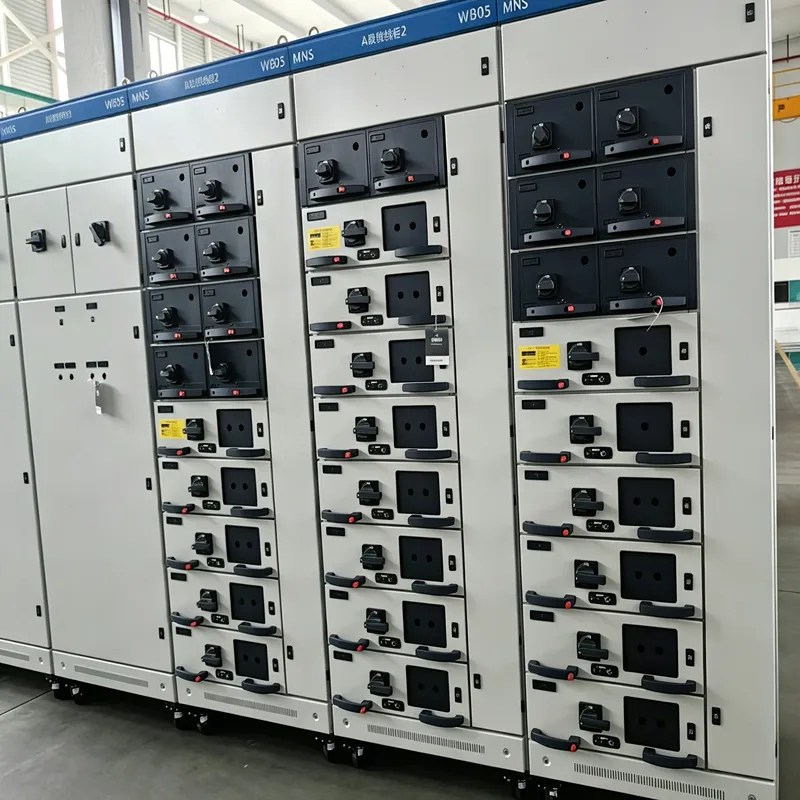

Internal View Compartmentalized Design

Compartmentalized Design

Internal separation per IEC 61439 Form 3b or Form 4.

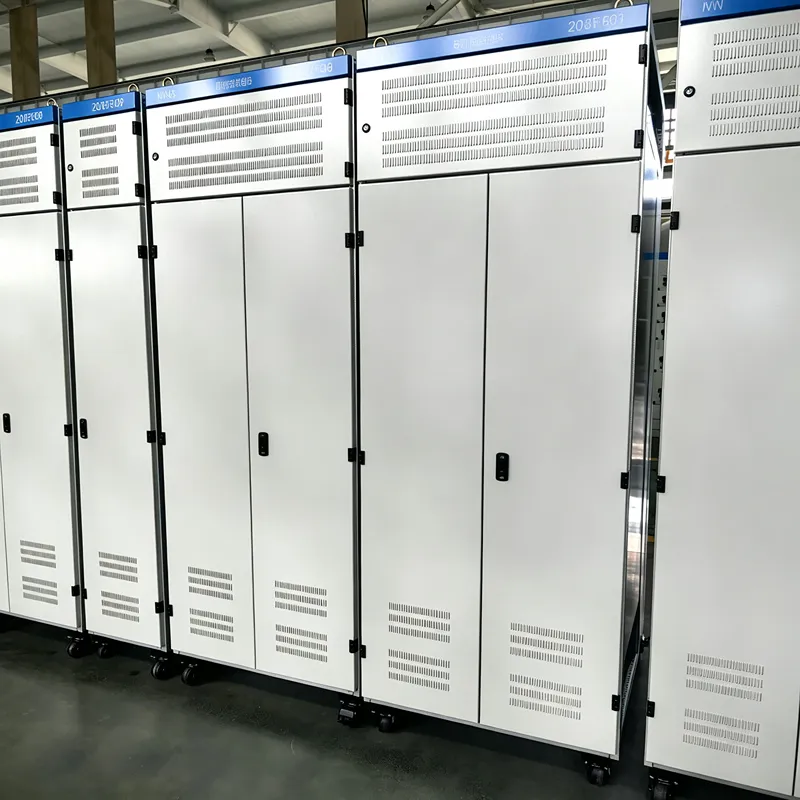

Component Detail Position Indicator

Position Indicator

Connected → Test → Disconnected positions for operational safety.

Installation Cable Management

Cable Management

Dedicated top and bottom cable entry zones with generous routing space.

Customization Capabilities

Send us your specifications for a tailored design

Drawer Configuration

Custom drawer types: starter type, metering type, breaker module.

Instrumentation

Ammeter, voltmeter, energy meter, power factor meter.

Control Circuits

PLC interface, communication modules, remote monitoring.

Arc-Flash Safety

Arc-flash containment design per IEC 61439 Standards.

Climate Control

Internal fans, heaters, or air conditioning systems.

Color & Labeling

Custom colors and labeling per client standards.

Full Assembly

Breaker installation and wiring included (optional).

Warum sollten Sie sich für SHIJIE entscheiden?

±0.2mm laser cutting for precise cutouts and clean edges
±0.5mm bending accuracy for square, consistent enclosures
Free design drawings within 3 days of requirement confirmation
IP-tested before shipment — no guesswork on protection ratings
ISO 9001 Qualitätsmanagementsystem
15–25 day production lead time with 99.5% on-time delivery
Export experience to US, EU, Australien, Mexico, und Südostasien
